Actuator architecture for robotics

System-level actuator review for robotics teams dealing with installed-behavior problems, not isolated parts.

Work is focused on how motors, gearboxes, bearing supports, housings, mounts, and assembly order behave once they are forced into a real joint envelope.

Primary scope

Actuator architecture, gearbox integration, and build-repeatability review

Typical triggers

Backlash drift, package compression, shock routing, thermal rise, and difficult assembly

Review posture

System behavior at installed interfaces rather than nominal component values

Why reviews start at the system level

The visible problem is usually at the joint. The root cause is often distributed across interfaces.

Backlash budget is often consumed by housing deflection, datum error, bearing fits, and clamp sequence rather than by gearbox specification alone.

Shock loads can bypass the intended compliance element when the surrounding structure creates a stiffer secondary route.

Prototype hardware may run acceptably once while still being overly sensitive to shim selection, service removal, or low-volume assembly variation.

Service focus

Scope centers on installed behavior, interface control, and repeatable assembly.

Joint-level actuator architecture tied to load path, package envelope, service access, and cable exit conditions.

Gearbox installation review covering pilots, bolt pattern stiffness, bearing support, backlash budget, and preload interaction.

Compliance and shock strategy that separates nominal torque transfer from peak event routing.

Manufacturing-focused revision of datums, assembly order, inspection access, and low-volume repeatability risks.

Figure set

Actuator stack

Motor → Gearbox → Compliance Stage → Output Support → Load

Packaging, backlash control, shock routing, and service access all accumulate through this chain.

Load path

Load → Shaft → Gearbox → Housing → Mount

Reaction forces need to be traced early so bearing overload and local housing flex are not discovered after build.

Backlash sources

Mesh + fits + support compliance + assembly variation

Lost motion usually sits across multiple interfaces, so correction has to be architectural rather than cosmetic.

Review sequence

Work moves from constraints to installed-interface behavior and then into build-repeatability controls.

Step

1

Define load cases, duty cycle, package limits, thermal environment, and service constraints before selecting the actuator stack.

Step

2

Map the torque path and the secondary reaction path so bearing overload, housing flex, and mount deformation are visible early.

Step

3

Review backlash, torsional wind-up, drag, thermal growth, and tolerance sensitivity at the installed interfaces.

Step

4

Revise datums, clamp sequence, inspection gates, and assembly order for repeatable low-volume build quality.

Technical tradeoff diagram showing precision, compliance, and cost

Technical case studies

Detailed case studies show where the design changed once preload, housing stiffness, service access, and inspection strategy were treated as first-order constraints.

Arm joint retrofit: datum relocation and housing-stiffness revision to reduce backlash drift after heat soak and service removal.

Mobile traction module: support-span change and inspection-gate definition to control shock routing and preload variability.

Humanoid knee subsystem: assembly-order revision and verification set definition for pilot-run repeatability.

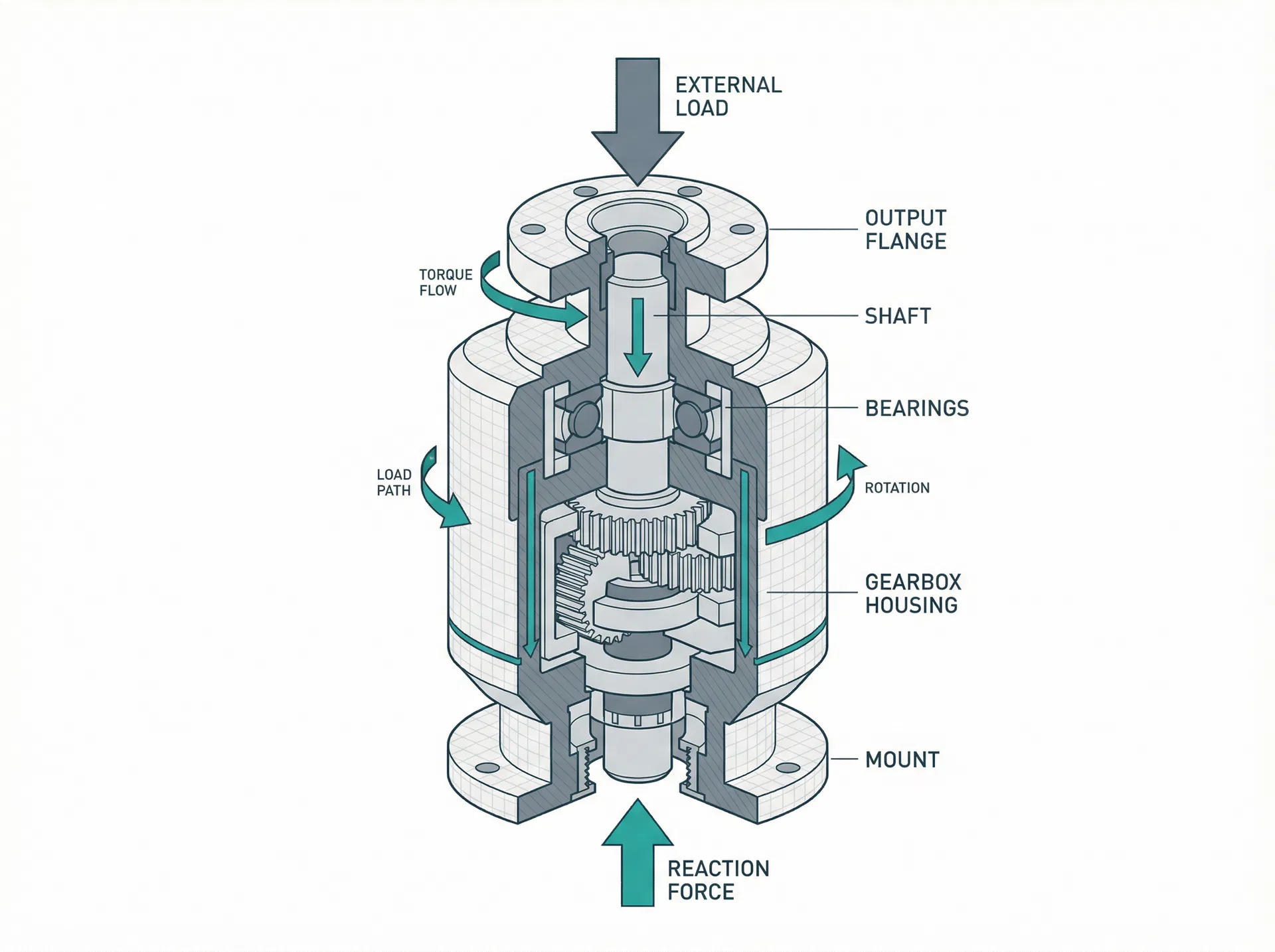

Load path diagram through an actuator assembly

Industries served

Typical applications combine constrained packaging, repeated duty, and structural interfaces that amplify small errors.

Robot arm joints with compact support spans and serviceable cable routing
Mobile traction and steering modules exposed to impact reversals and seal drag
Experimental humanoid joints balancing bandwidth, shock survival, and pilot-run repeatability
Lab automation axes where positioning drift and assembly consistency directly affect system output

Start an engineering review

If the main problem appears after installation, the review should begin at the load path, support structure, and assembly sequence.

Early conversations are most useful when they include measured backlash drift, impact cases, thermal limits, package envelope, service removal constraints, and any interfaces that are difficult to fixture or inspect.
